- Warranty Info - The warranty is one year since you get the item. Please always abide by all safety rules and use common sense, or you will lose warranty.

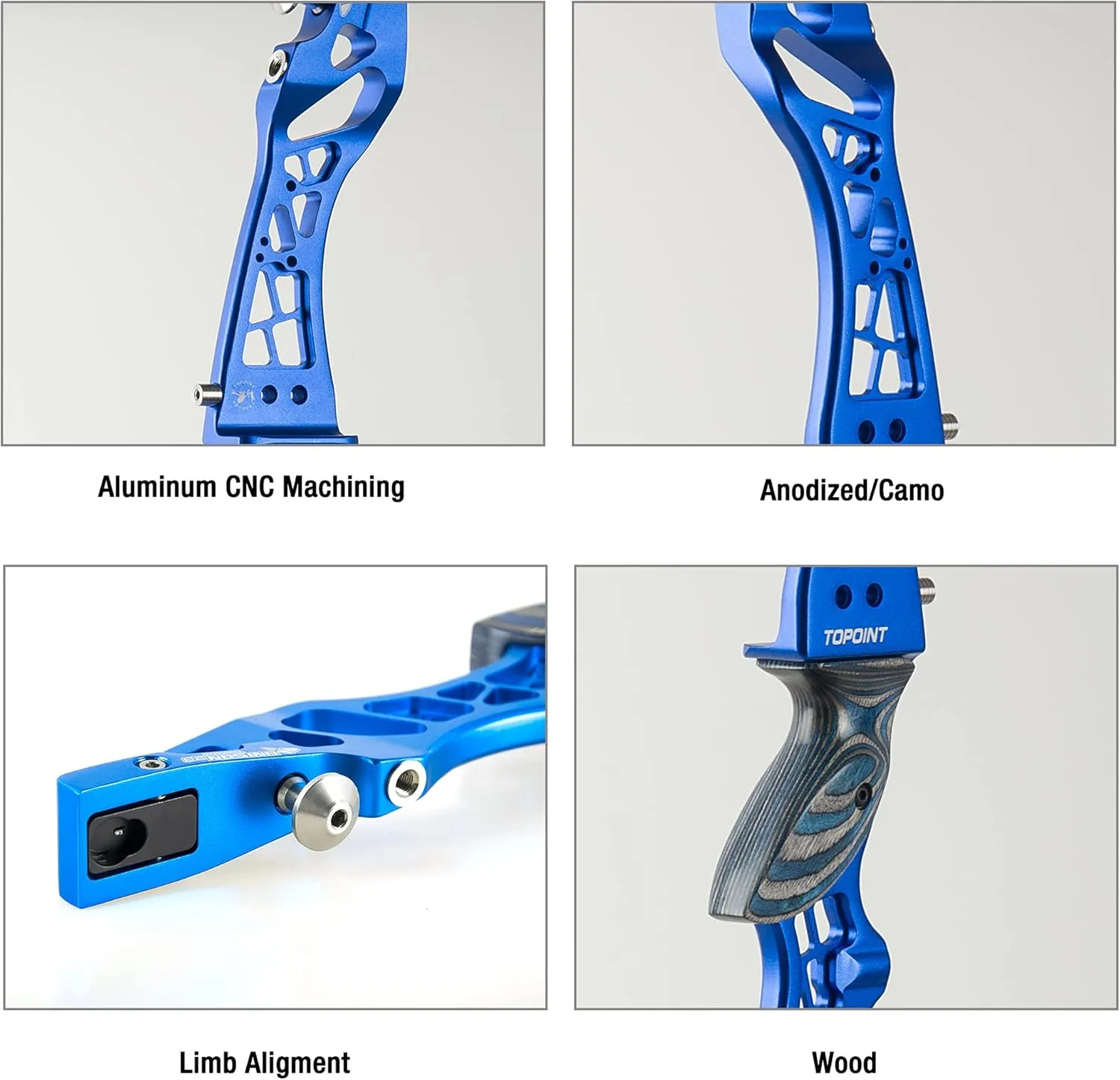

- CNC Machining Center High accuracy Machined Anodized Aluminium Alloy 6061-T6,Wooden Grip Same Color With The Riser
- ILF Limb alignment system,fit for all ILF limbs.
- Special alignment system,prevent the screw loosening design,could fit the Limbs degree angle,protect the limbs contacting part, for better stabiliztion and better looking.
- Important Point:Bow Riser Only,String And Limbs Are Not Included In The Package

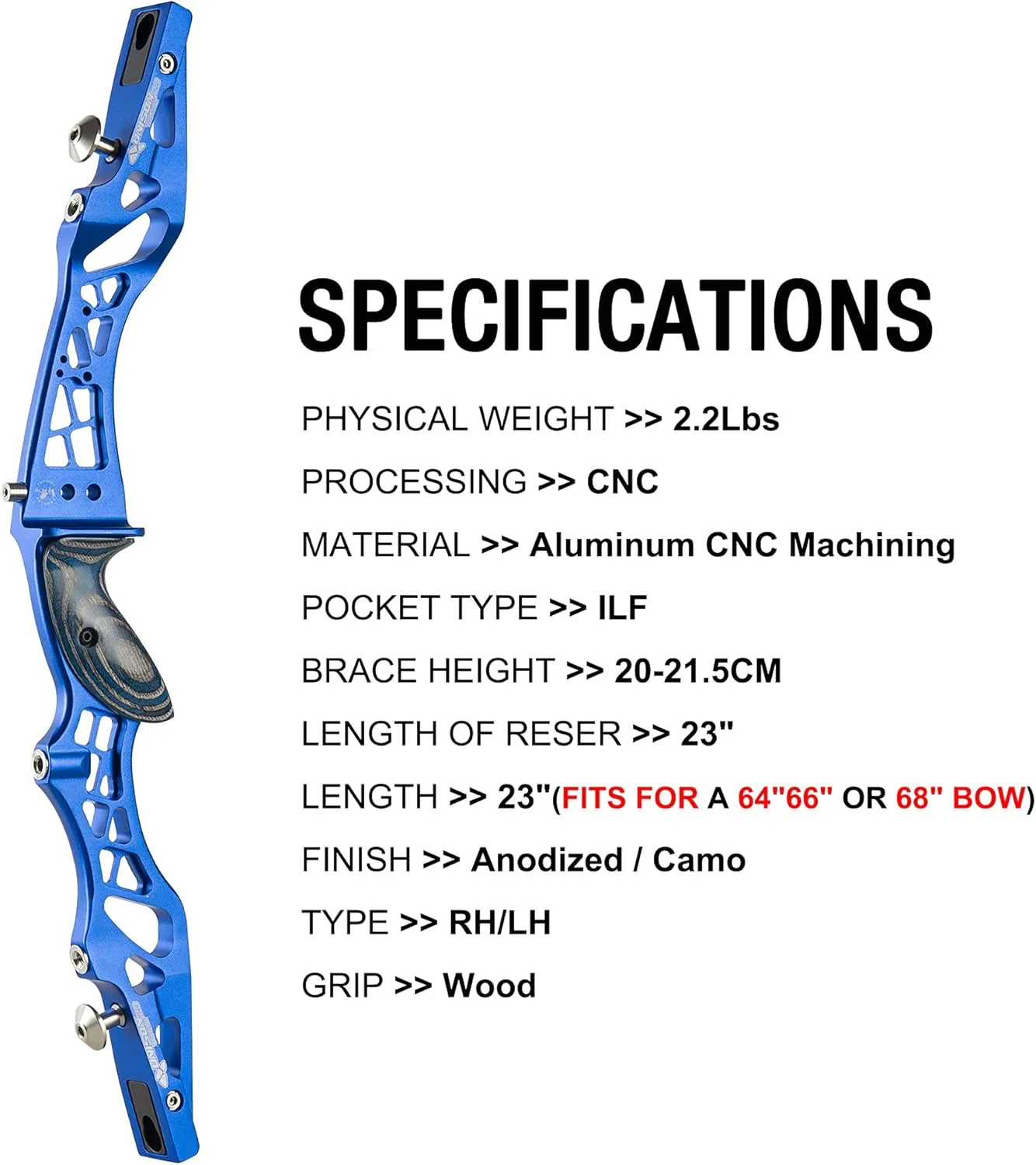

Specification
Net weight: 2.2Lbs
Riser length: 23"
The handle material: aluminum alloy 6061-T6. Wooden Grip Same Color With The Riser

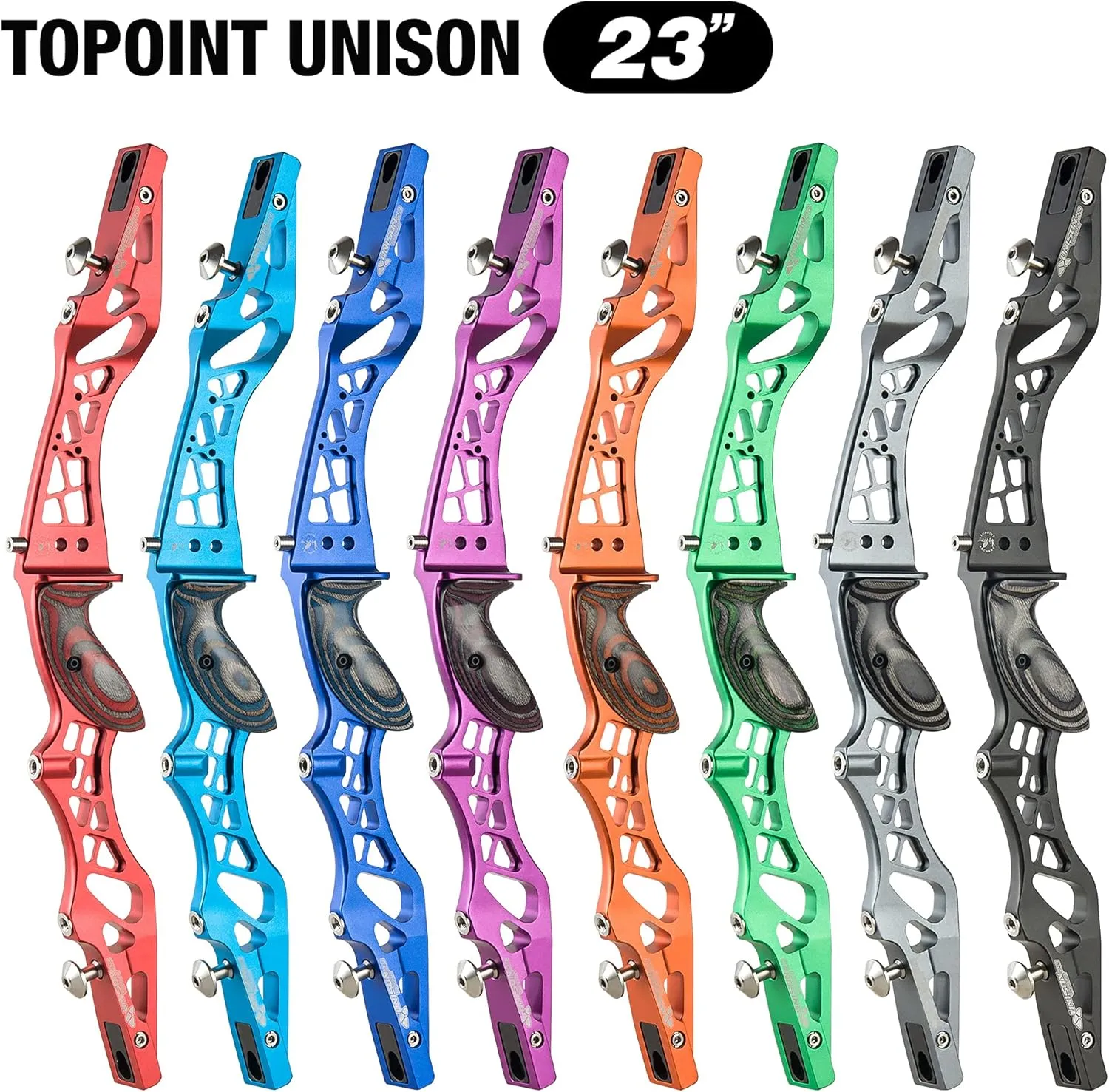

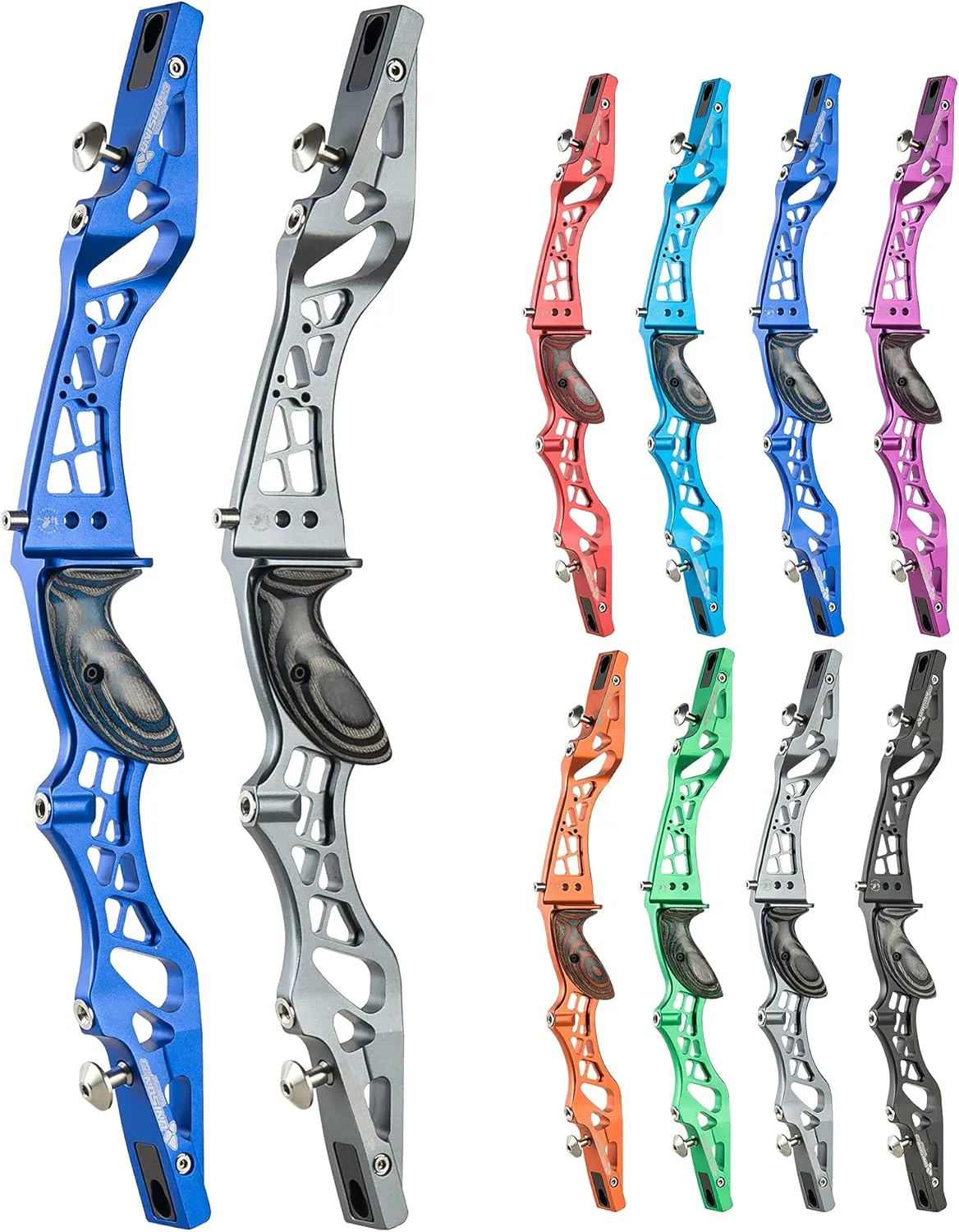

Color: Black/Purple/Bule/Red/Orange/Smoke/Green/Turqoise
Features: CNC machining, ILF device
Introduction：
Brace height
Brace height is the horizontal distance between the grip and the bowstring. Changingthe brace height does not affect the draw weight. But will significantly affect bow perfor-mance. A higher brace height will decrease velocity while a lower brace height will increasevelocity.
Tiller and draw weight adjustability
To adjust the tller and bow weight, firstly, you need to loosen the weight tiller locking bolt with the Allen key. Use the Allen key to turn the weight tiller adjustment bolt clockwise to increase bow weight and counter clockwise to decrease bow weight. When the correct poundage is set, tighten the locking bolt located at back of theriser. It is best to adjust the tiller and weight while the bow is unstrung. When adjusting the tller and bowweight, do not exceed the recommended turns out from the maximum position.Maximum opening: 4 complete turns starting from closed position.
Limb / riser alignment
Before adjusting the alignment of the riser, first check the center string position towards the riser. You can adjust the centershot without unstringing your bow.
1. Unscrew both locking screws
2. To adjust limb position to the left, loosen the inner left
side bolt and tighten the right sided one till the limb is centered.
3. Once the limb is centered, retighten the left side bolt
4. Fasten both locking screws
Package Including:
1 X Riser
