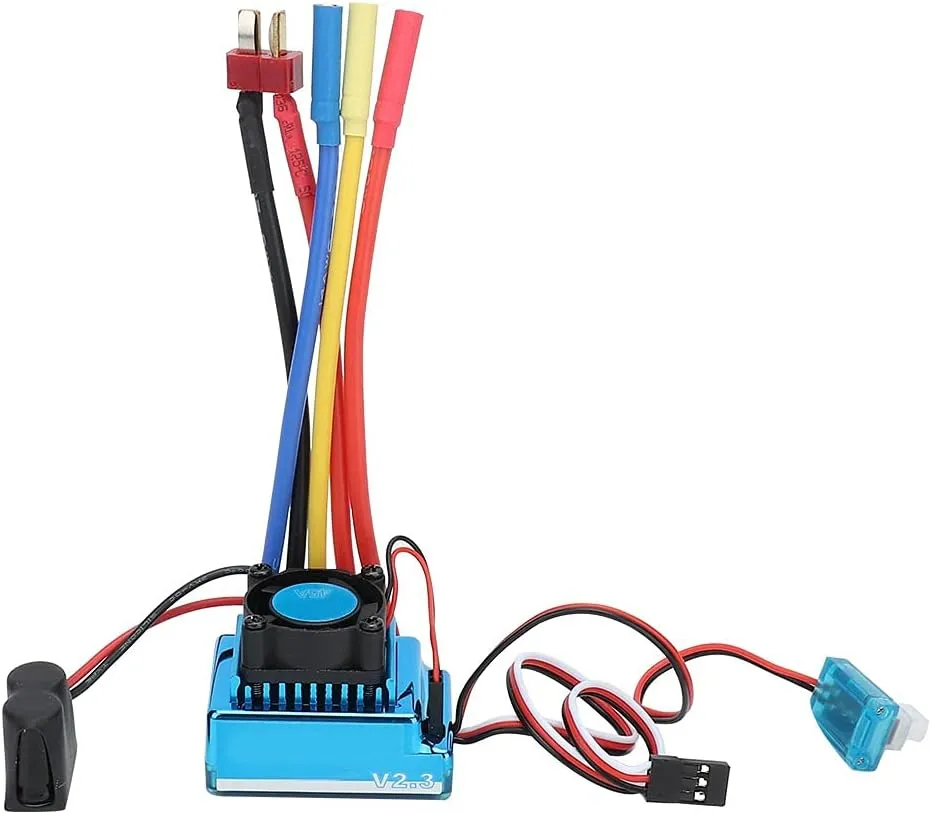

- BEC output: RC Brushless ESC uses an external programming interface to easily connect program cards when setting up ESC. (Only compatible with 2.3v programming card), BEC output 5.8V/3A(switch mode)5.8V/3A(switch mode)5.8V/3A(switch mode).
- Proportional braking: Brushless ESC uses proportional braking, maximum braking force adjustment in 4 steps, braking force adjustment in 8 steps, and 9 steps from soft to acceleration (punching) adjustment.
- Locking protection: Electric Speed Controller ESC uses protection/motor locking protection. A single button (the SET button on ESC) sets ESC and easily resets all parameters to factory defaults.
- Multiple protection: RC Car Accessory Part has low-voltage cut-off protection, overheat protection, throttling signal loss protection and other functions, suitable for all-weather competition. It is your useful remote control car accessory.
- Scope of application: Electric Speed Controller ESC is powerful and suitable for different types of cars. It is suitable for 1/16, 1/14, 1/10 models, for brushless motor>=9T>=9T>=5.5T.
Features:
dustproof, suitable for all - weather competition.
External programming interface, easy to connect to program card when setting ESC.(compatible with 2.3v programming card only)
Proportional braking, 4 steps of maximum braking force adjustment, 8 steps of braking force adjustment.
9 steps from soft to accelerated (punch) adjustment
Strong power, suitable for different types of car, tires and tracks.
Protection/motor lock protection.
Single button (the SET button on ESC) sets the ESC and easily resets all parameters to factory default settings.
Specifications:
Condition: 100% Brand New
MODEL45A60A80A
Cont.Current/Burst Current45A/180A60A/0A80A/480A
Motor Type sensorless brushless motorsensorless brushless motorsensorless brushless motor
Suitable Car1/16,1/14,1/10 car1/16,1/14,1/10 car1/14,1/10 car
Suitable brushless motor>=9T>=9T>=5.5T
Resistance0.0014ohm0.0007ohm0.0005ohm
Battery2~3cells Lipo2~3cells Lipo2~4cells Lipo
BEC Output5.8V/3A(switch mode)5.8V/3A(switch mode)5.8V/3A(switch mode)
Package List:
1 * ESC
1 * Manual
Note:
Before using ESC in water, remove the cooling fan: clean and dry the ESC immediately after use to prevent the connector from rusting.
The brushless power system of RC model is very powerful and dangerous, so please read the product instructions carefully.Since we can't control the installation.
Under no circumstances shall we be liable for the use, use or maintenance of this product damages, losses, or expenses.
