- [Robot Learning Start kit]: This car chassis provides the robot platfrom, then many function and experiments can be done on this platfrom.
- [Embedded Language Learning]: Many experiments and functions can be realized on this chassis. So, arduino, raspberry pie, STM32, many embedded language can be learned quickly.

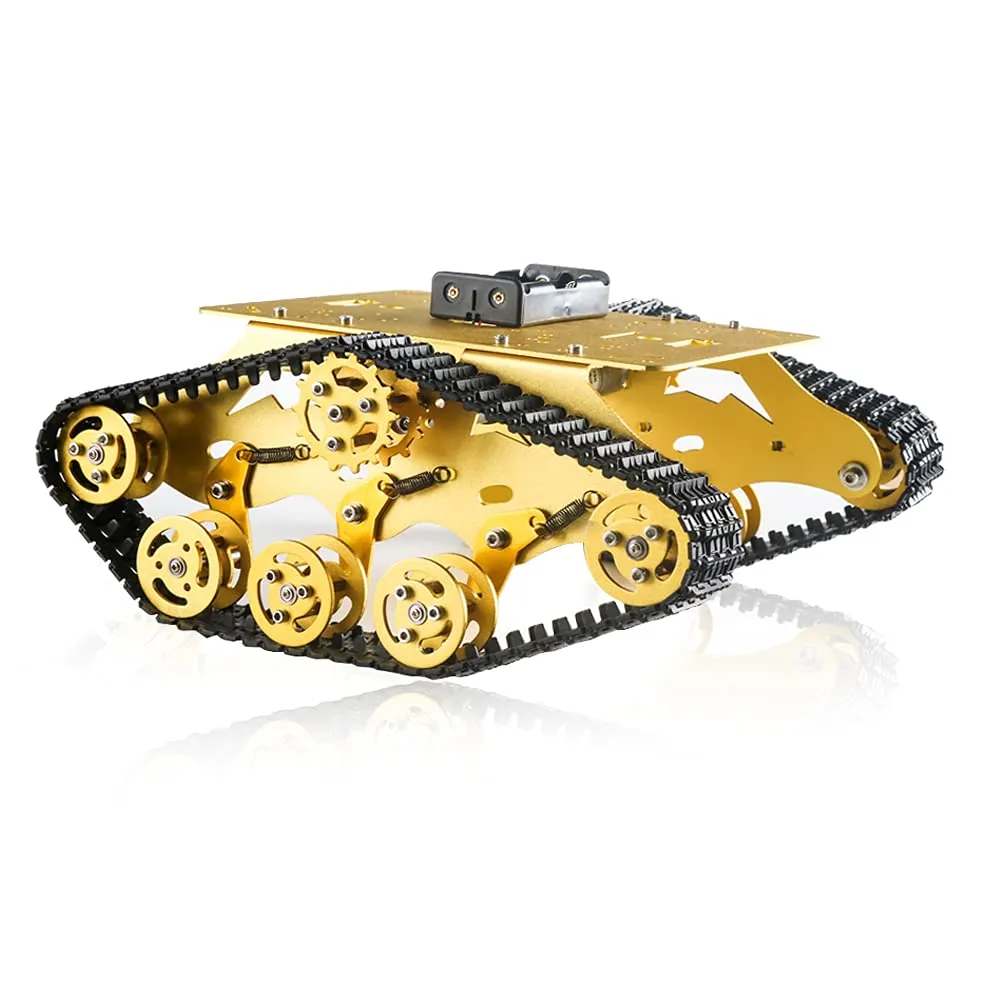

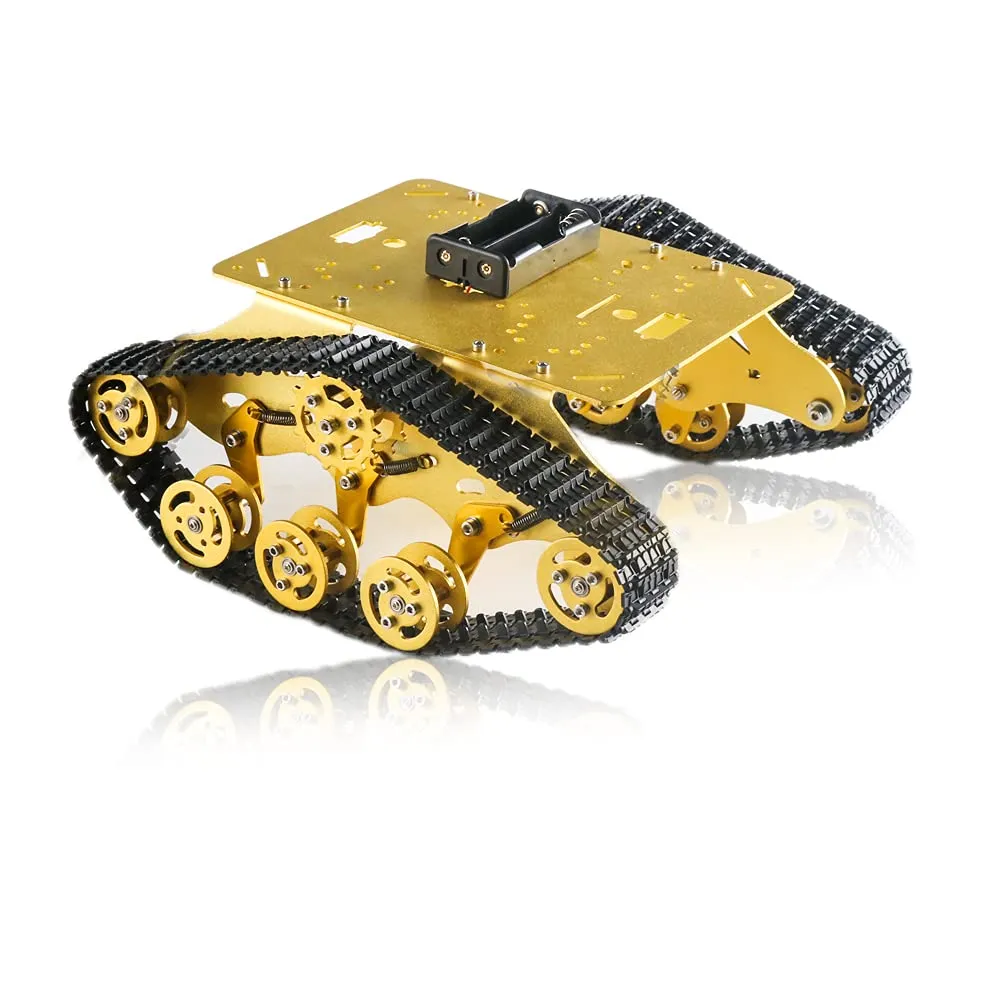

- [Absorption System]: This tank chassis is designed as an absorption system, which can be used for the obstancle avoidance, video monitor, remote control, and other service.
- [Absorption System]: This tank chassis is designed as an absorption system, which can be used for the obstancle avoidance, video monitor, remote control, and other service.
Driving Wheel Parameters
- Name: metal wheels
- Color: silver
- Material: aluminum
- Type: with connectors
- Name: Tracks
- Material: Engineering plastic
- Colour: Black
- Size: 4.5cm * * 78cm / stripe (about 100 joints)
Pacakge Included
- Tracks: 2 PCS
- Driving Wheel: 2 pcs (4mm inner size)
- Bearing wheel: 10 pcs
- Metal Frame: one set
- DC Motor: 2pcs
- Screws & tool: several
- Name: 25mm DC carbon brush motor (with Hall sensor code disc)
- Output rate: 150 ± 10% rpm
- Load current: 200mA (Max)
- Stall current: 4500mA (max)
- Locking torque: 9.5kgNaN
- Load speed: 100 ± 10% rpm
- Load torque: 3000gNaN
- Load current: 1200mA (Max)
- Load noise: 56dB
- Working voltage: 9V
- Shaft extension size: 14.5mm
- Axial clearance: 0.05-0.50mm
- Screw size: M3.0
- Shaft diameter: phi4mm, D3.5
- Code wheel parameters: 2 pulses / turn
- Sensor working voltage: 3-5V.
- Package Dimensions : 10.79 x 7.24 x 2.52 inches; 2.76 Pounds
- Date First Available : March 25, 2021
- Manufacturer : SZDoit
