Features

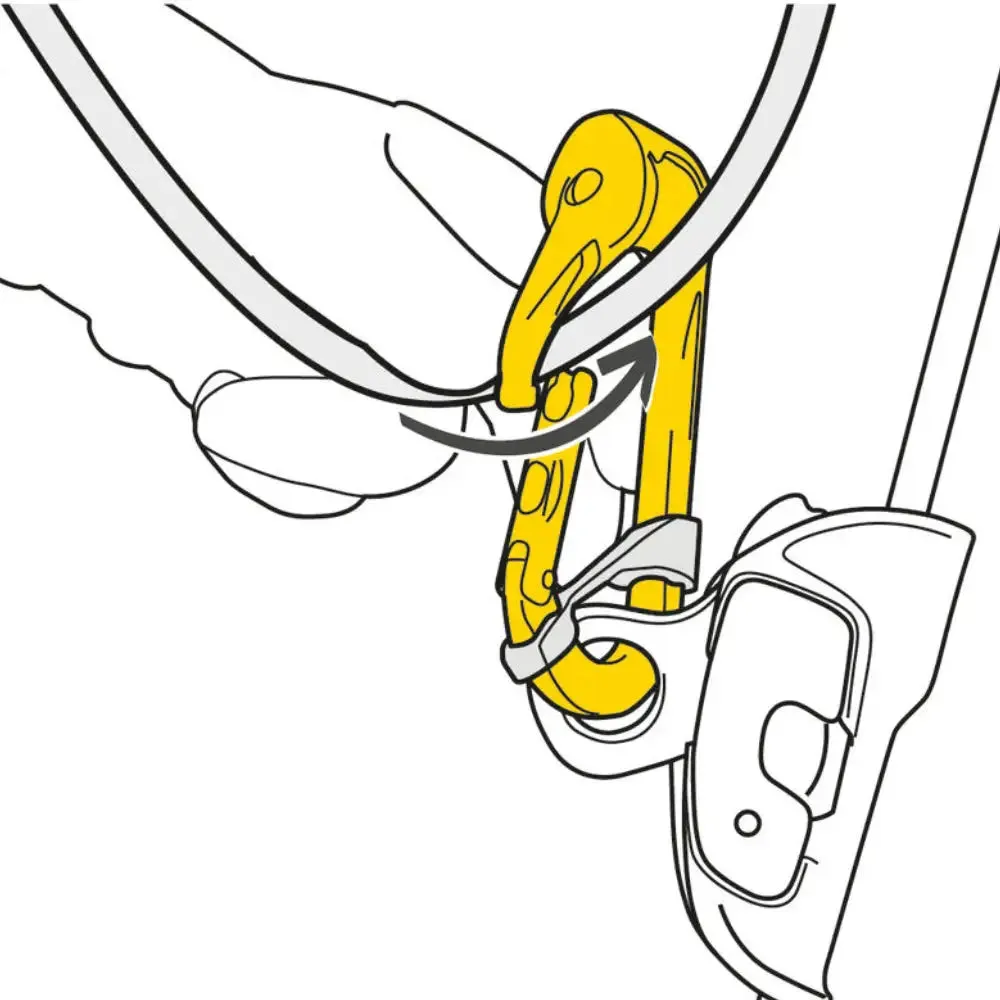

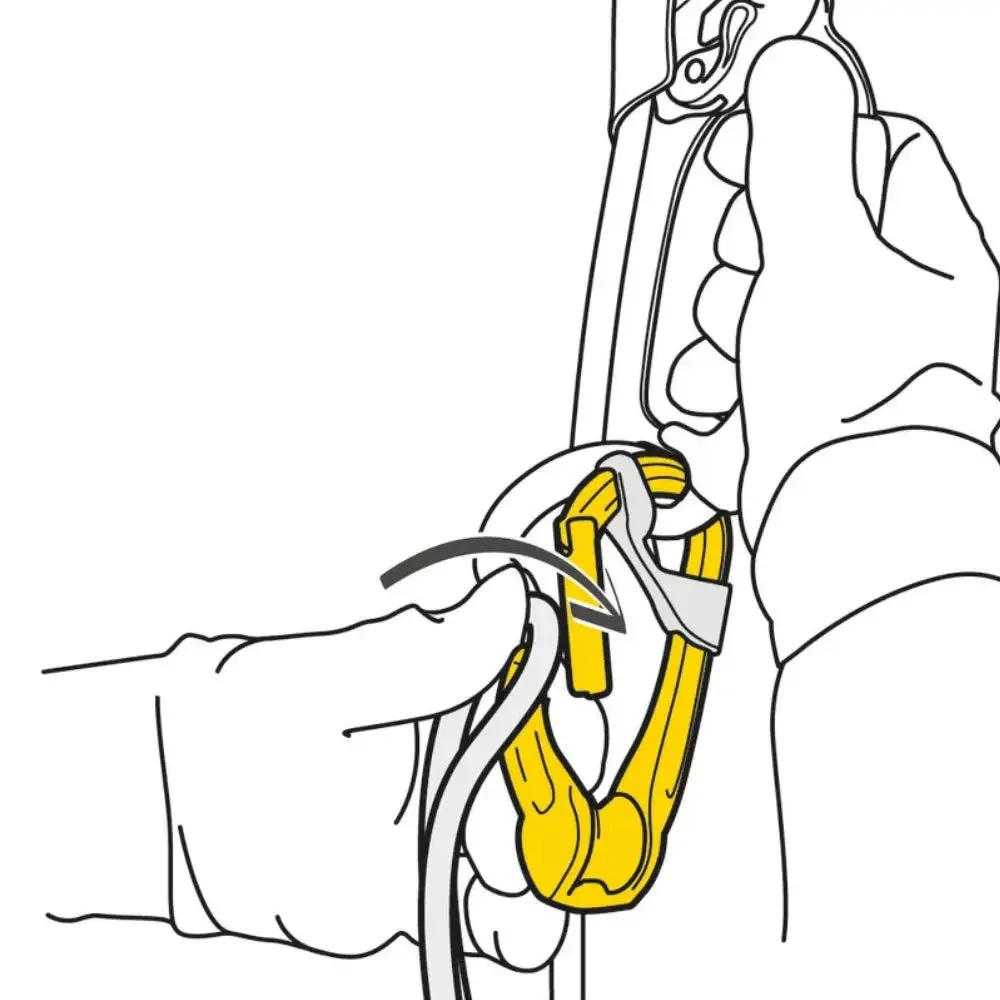

- Easier handling: - sheave mounted on sealed ball bearings for excellent efficiency - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor - may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis and to limit the risk of it flipping - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- H profile of carabiner: - ensures an improved strength-to-weight ratio - protects markings from abrasion

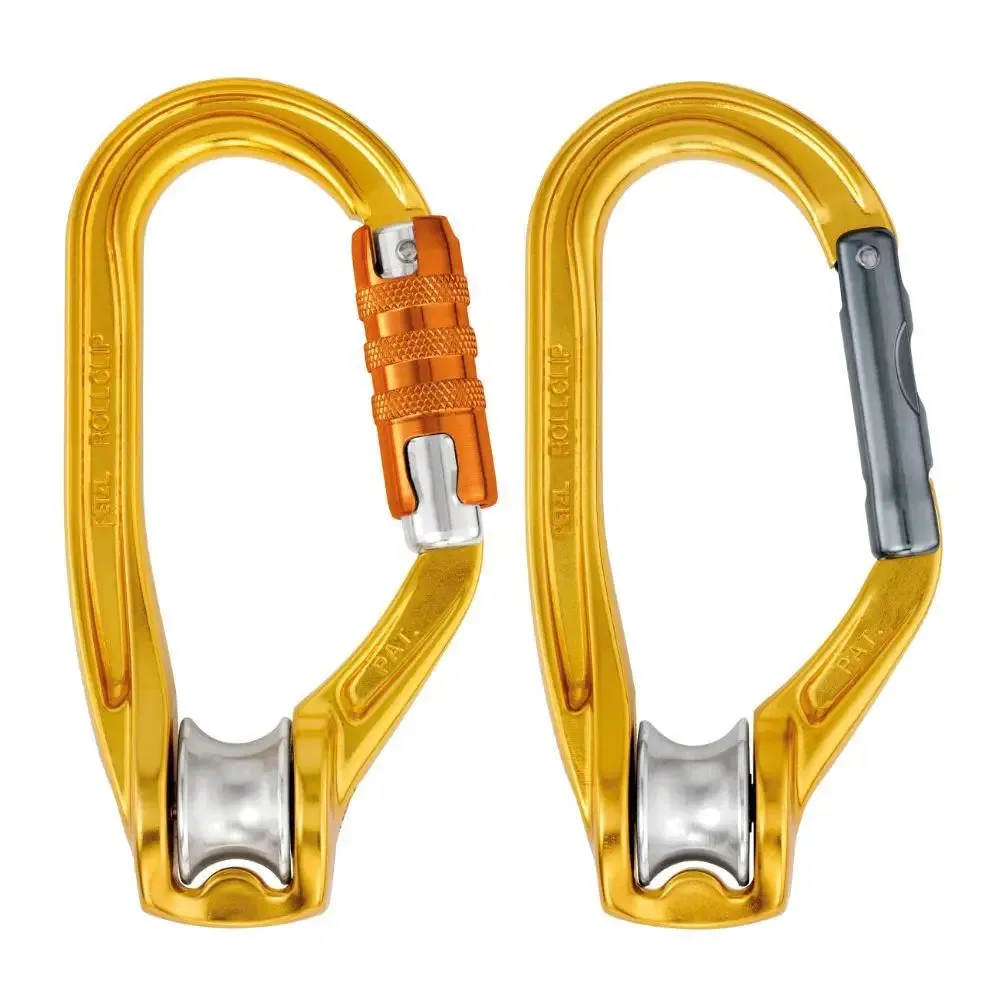

- Available in versions with or without TRIACT-LOCK locking system

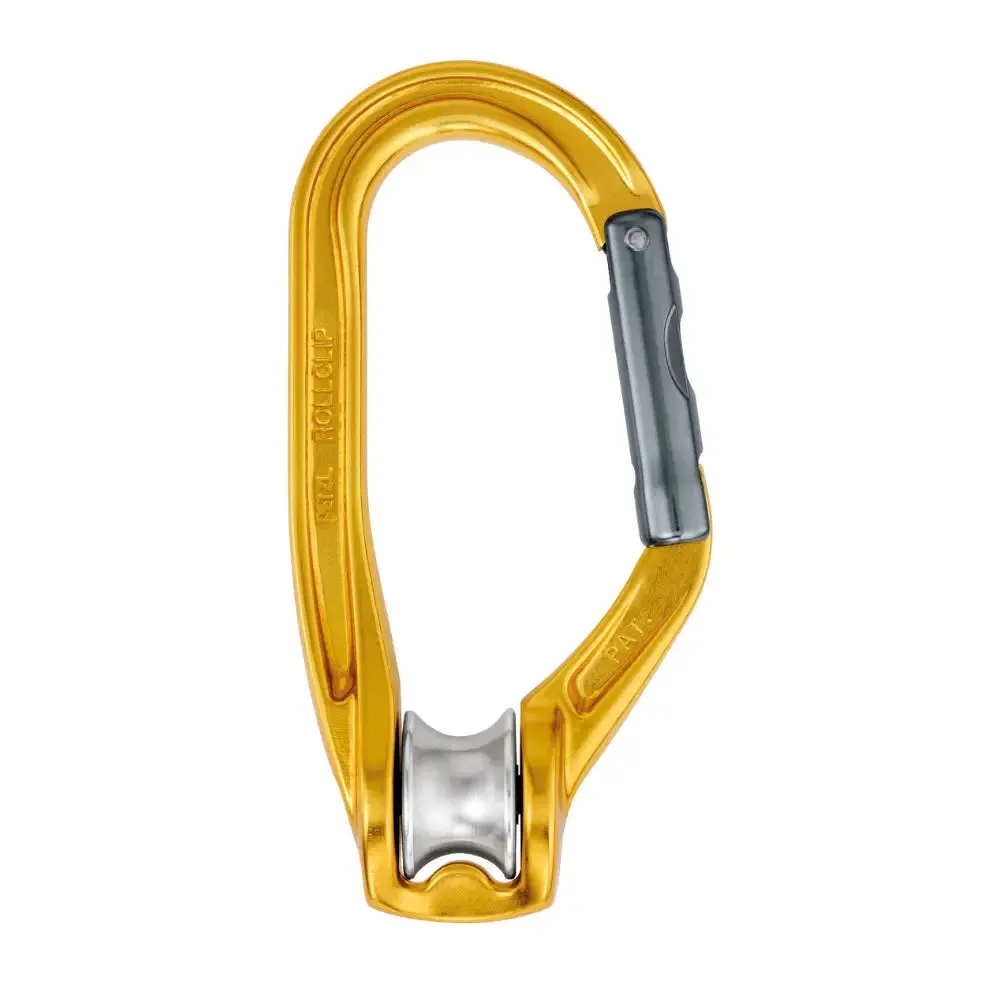

- Non-Locking is a spring gate action

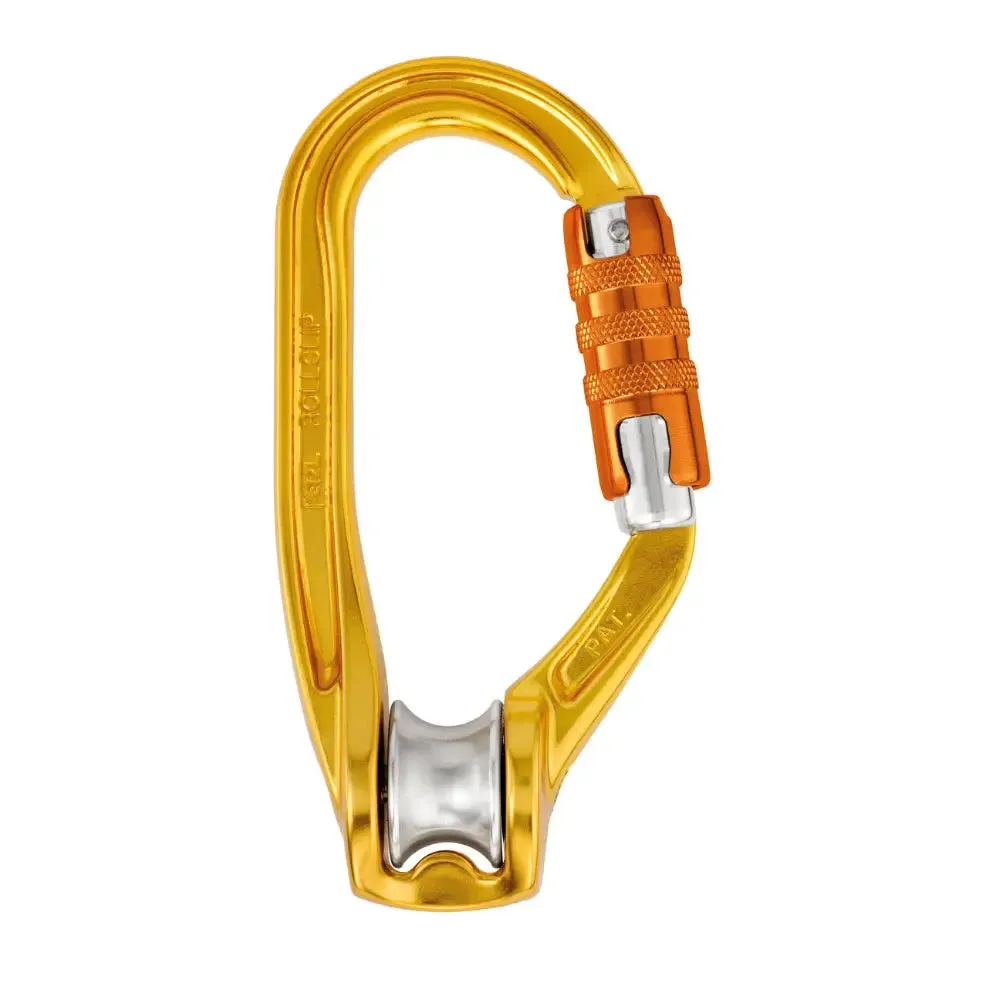

- Triact Lock is a 3 way locking system
Specifications
- Material(s): aluminium
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
- CE EN 362, EN 12275, EN 12278, UKCA, EAC
