- Automatic on/off control for momentary contact and individualized daily operation
- Digital 7-day, 24-hour display with 56 on/off cycles each day, one-minute minimum cycle, manual override switch
- Automatic compensation for daylight saving time and leap year
- 120-277 VAC input voltage for multiple uses
- Noryl plastic alloy indoor/outdoor enclosure with locking hasp

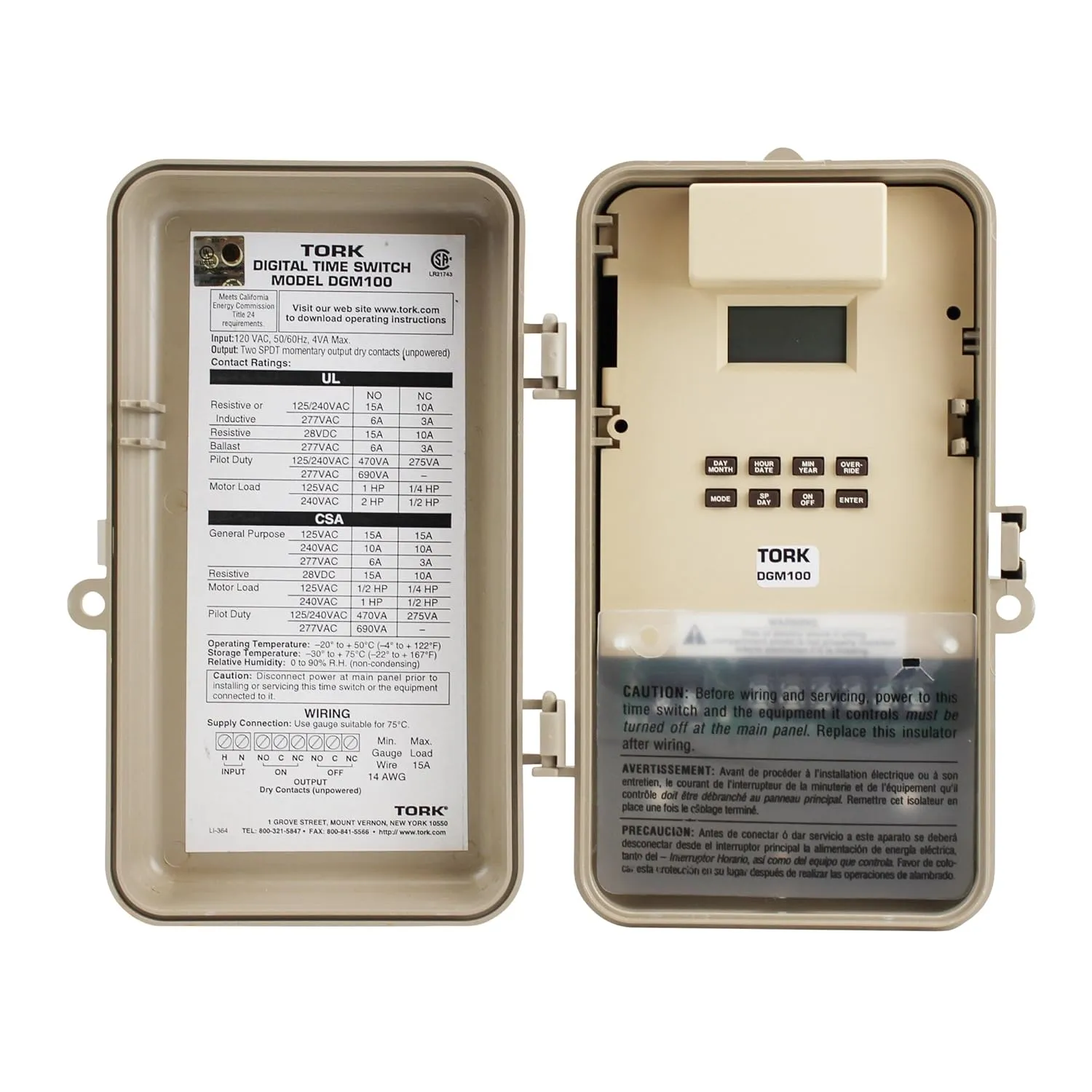

This NSi Industries DGM100A digital time switch accepts 120-277 VAC input and its SPDT output contacts provide momentary contact operation (up to two seconds) for mechanically held contactors and low-voltage remote control operations. This timer includes 56 pairs of on/off set points, has a minimum cycle time of one minute, and is suitable for individualized daily operation. A rechargeable super capacitor provides seven days of backup power to maintain time and schedule settings. This 365-day timer can adjust for daylight saving time and leap year and can track nine holidays. The single-pole double-throw (SPDT) contacts are housed within a Noryl plastic alloy enclosure that meets NEMA-3R standards for water resistance and has a lockable hasp. The enclosure is suitable for both indoor and outdoor use and mounts to an external surface. This digital timer is Underwriter Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance and is suitable for controlling mechanically-held contactors, 3-wire momentary lighting systems, and remote station switching.
Specifications
Switch typeDigital 7-day, 24-hour timer with 56 unique set points each day of the weekInput power supply120-277 VAC, 50/60 Hz, 6 W power consumption, rechargeable super capacitor backupOutput contactsSPDT contacts, 20 amp load rating, 2 hp motor load ratingOn/off controlOne-minute minimum on/off cycle, up to 56 cycles per 24 hoursEnclosureNEMA-3R Noryl plastic alloy enclosure with clear Lexan cover, indoor/outdoor use, external surface mountTerminal wire size range#12 to #18 AWG (American wire gauge)Operating temperature range-31 to 131 degrees F (-35 to 55 degrees C)Standards metUL Listed, CSA certifiedAutomatic switches are used to turn on or off electrical devices and are activated by time, light, and motion. Time activated switches (also known as timers) operate at preset time intervals during a daily or weekly period and can be either mechanical or electronic. Mechanical timers feature a dial with multiple pins to set the on/off time intervals. Electronic timers feature an LCD display and pushbuttons to set the time intervals. Light activated switches (also known as optical or photo) operate when ambient light levels reach preset values, generally measured in foot candles. Motion-activated switches (also known as motion sensors) operate when an electronic field of a preset range is interrupted. These switches can include energy saving logic that uses combinations of time, light, and motion to operate and can include one or more device outlets or circuit contacts. Automatic switches are used to control indoor lights, outdoor lights, appliances, and small equipment motors.
NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.
- Product Dimensions : 10 x 10 x 10 inches; 1.85 Pounds
- Date First Available : May 17, 2013
- Manufacturer : NSI Industries
