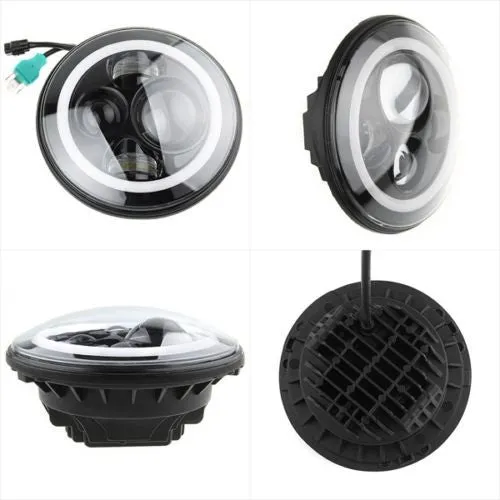

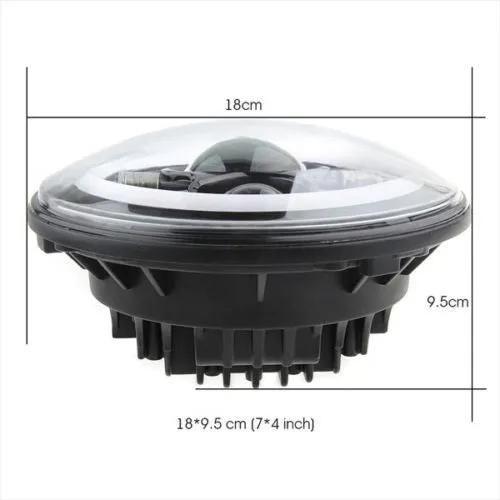

7inch LED headlight headlamp x 2 new projector lens high output. EMARK APPROVED
IF YOU 4WD IS NEGATIVELY SWITCHED YOU WILL NEED TO PURCHASE NEGATIVELY SWITCH ADAPTER FROM OUR STORE OR DOWNLOAD OUR HOW TO CONVERT TO NEG SWITCHED INSTRUCTIONS
You can choose to connect your White Halo on your park lights, You may also choose to connect the other output to your indicators, When your white DRL halo is on and you indicate the Halo which flash amber like a normal indicator.
- Type:7'' LED Headlight
- LED Type: CREE LED from USA
- Efficient Power:45W (high beam); 30W (low beam)
- Input Voltage: 10-30V DC
- Lumen Flux: 4800LM (High Beam), 3000LM ( Low Beam)
- Connector: H4 / H13
- Life-span:Above 50000hours
- Lamp Cup Material :Polycarbonate ABS
- Color Temperature: 6000K
- Housing Material: Aluminum
- Lens Pattern:High & Low Beam

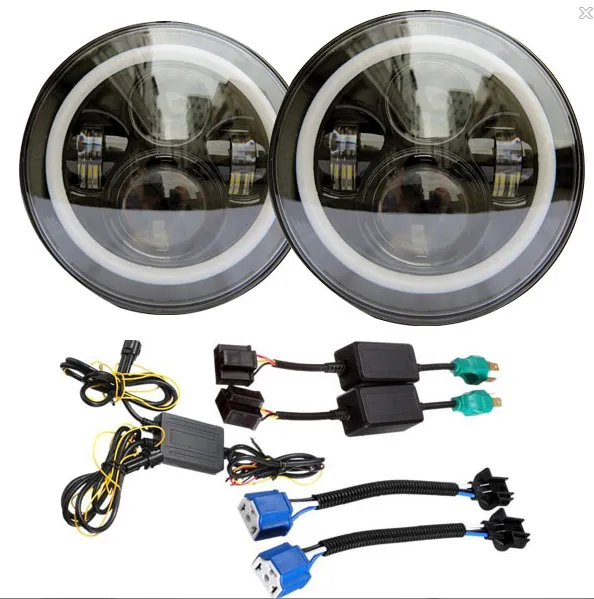

- Package includes: 2PCS 7'' Headlight
- Canbus H4/H13 Harness

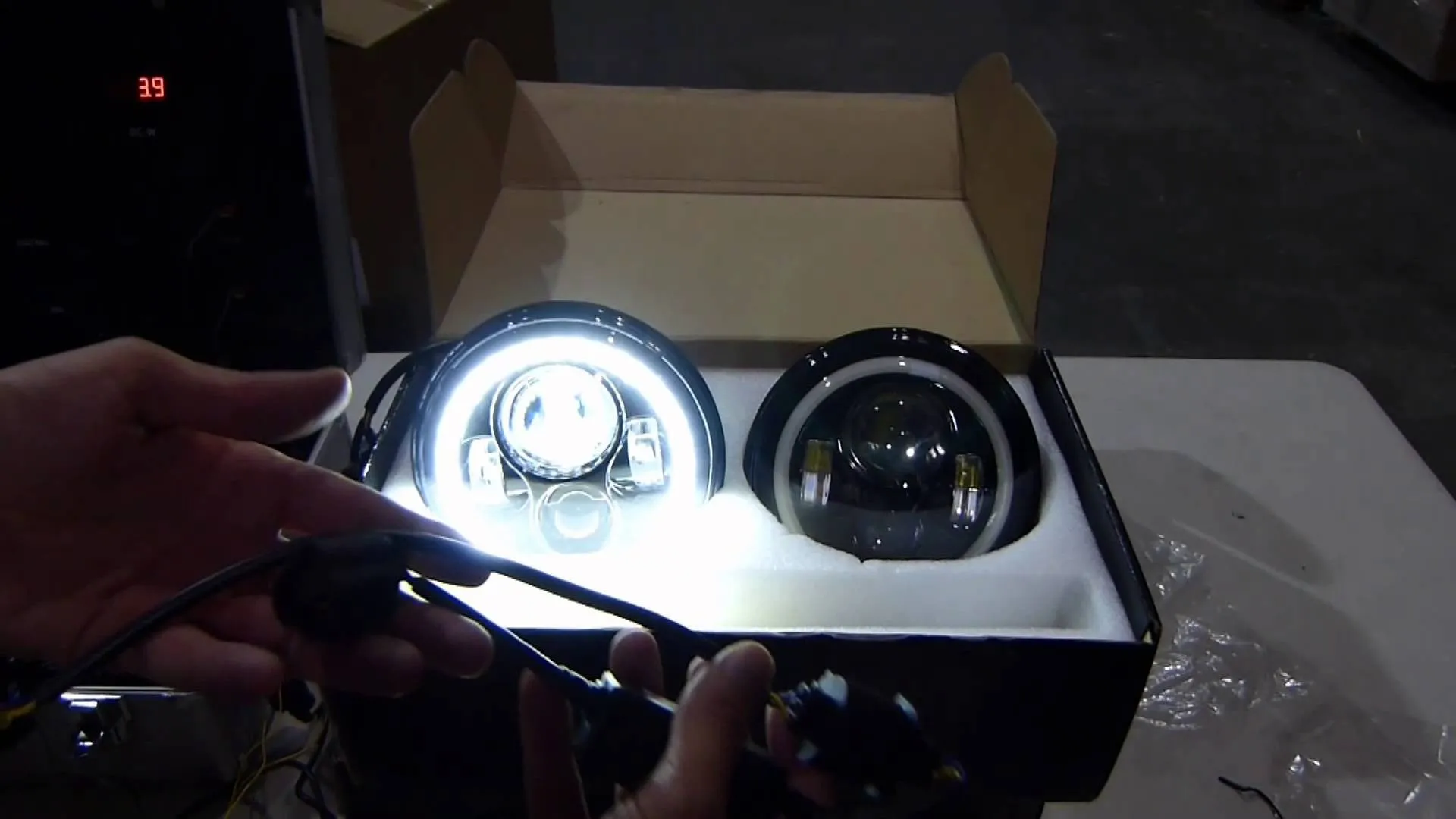

WATCH THE VIDEO ON HOW THEY WORK.

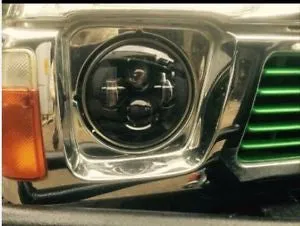

Remove the outer metal retainer (3 screws) and the light falls forward into your hands. Just unplug the old and plug in the new. Re-position the light and screw in the retainer and you are done. There is no need to remove the grill or headlight surrounds. Then just tap the DRL wiring loom into your parker and indicator wires.
