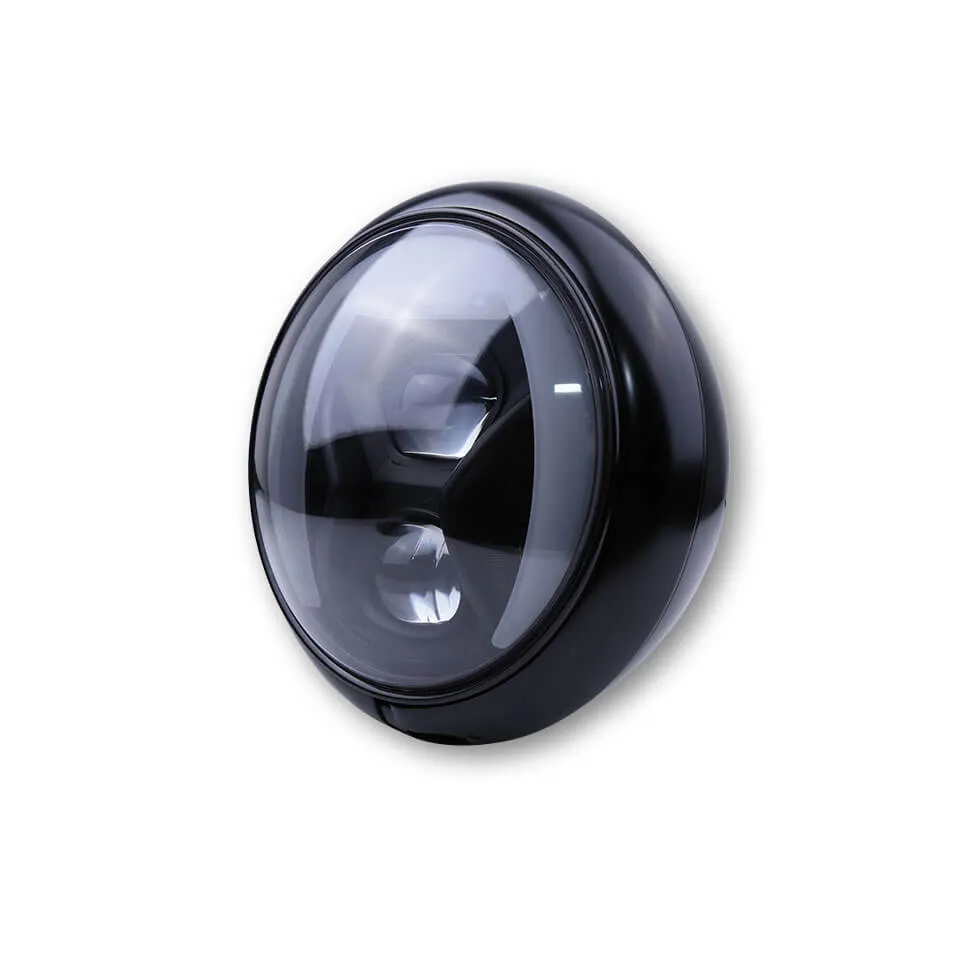

Type 8 7" Adaptive LED Headlight With Housing

The Highsider Type 8 Adaptive 7″ LED Headlight is the perfect way to improve visibility at all times. The Type 8 headlight also features a unique built-in halo running light. The headlight is pre-installed into a classic headlight bucket and includes a secure mounting bracket for easy mounting. Thanks to advances made with modern LED lighting technology, forward visibility will no longer be an issue. Tilt-activated adaptive cornering lights offer clear advantages over a conventional headlight. The cornering light activates when the motorcycle is leaned over in corners to better improve road illumination. Two ellipsoidal lenses in combination with powerful LEDs turn night into day. The headlight is available with a chrome or black finish. E-approved & DOT compliant.

Dimensions:
Diameter: 8.66″ (220 mm)  Depth: 6.10″ (155 mm)  Distance mounting holes -Distance of mounting holes on bracket (center to center): 2.55″ (65 mm) Headlight insert Ø: 7″ (178 mm)  Bottom mounting

Connections:
Power input: 3-pin Connector:
Red wire = low beam ( )
White wire = high beam ( )
Black wire = ground (-)
Separate wire (round connector):
Red cable = LED position light ( )

Scope of delivery: 1 headlight and housing
