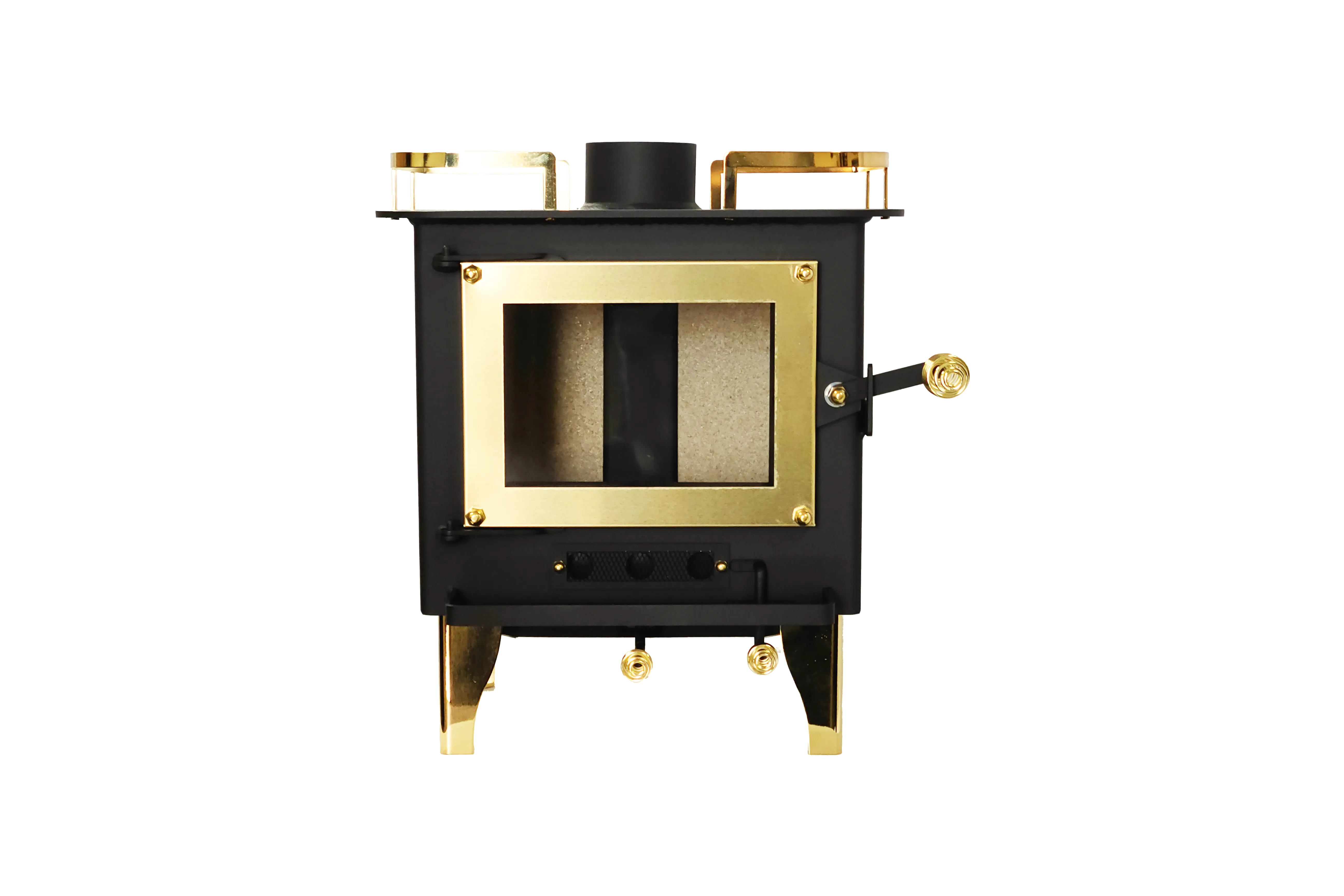

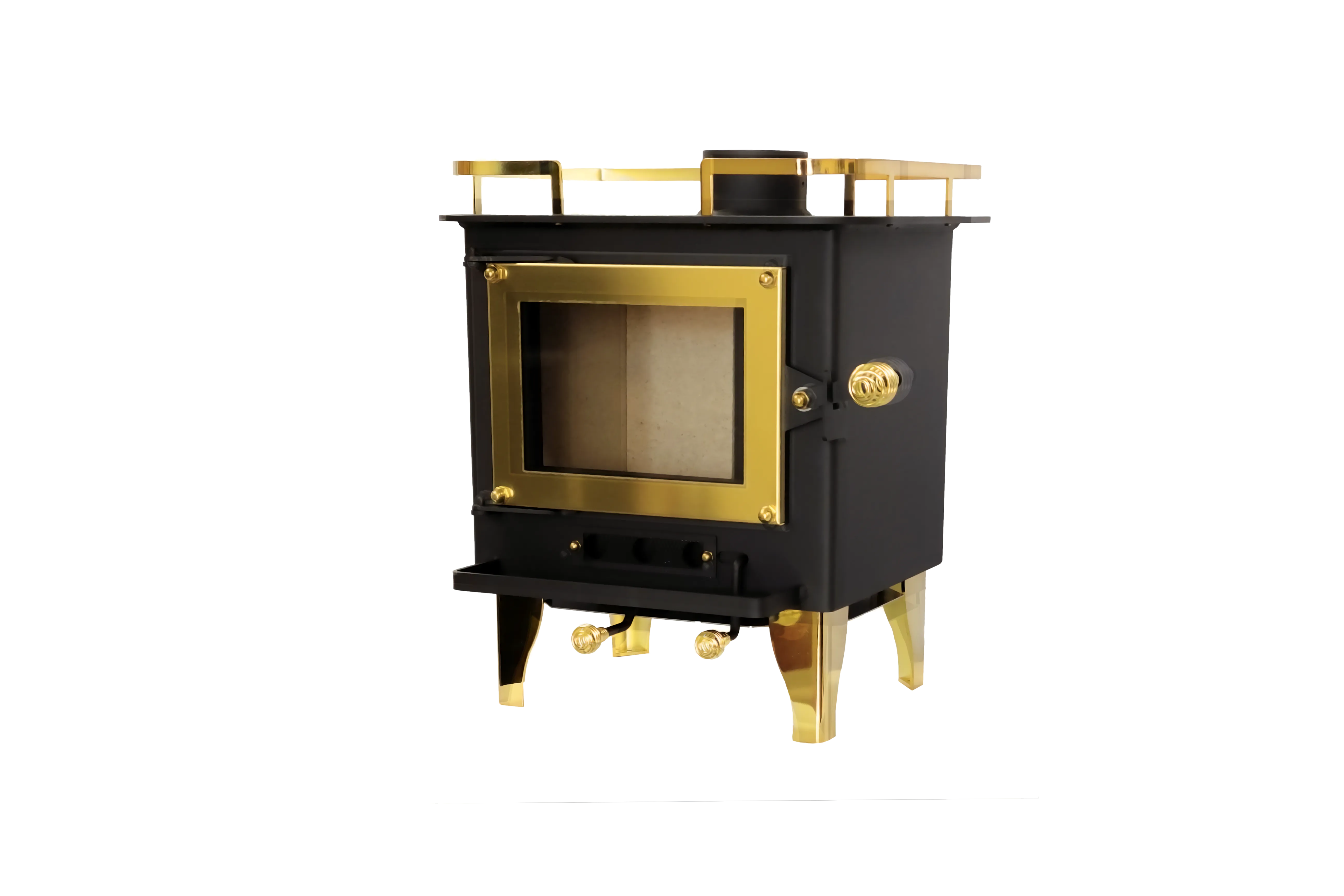

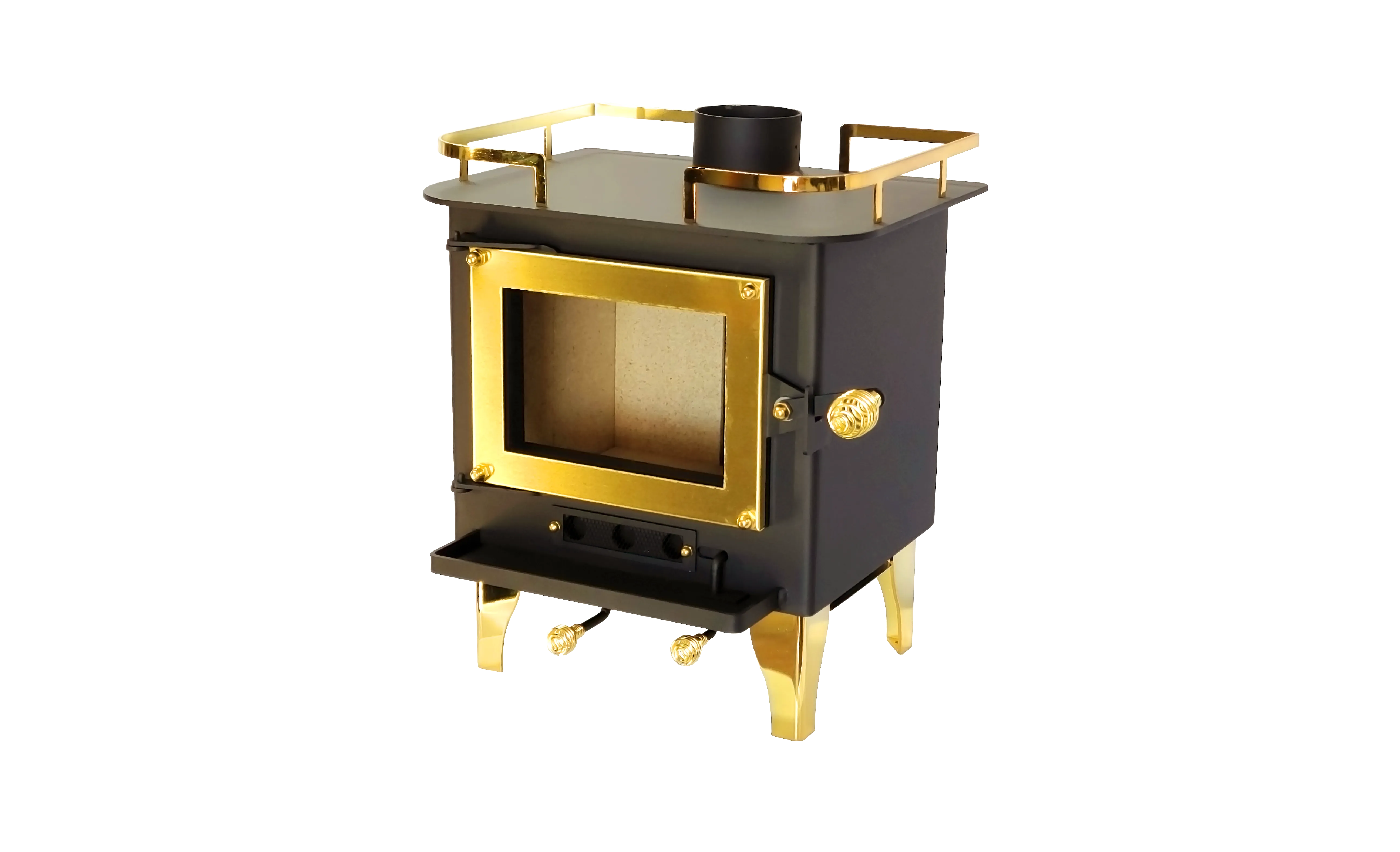

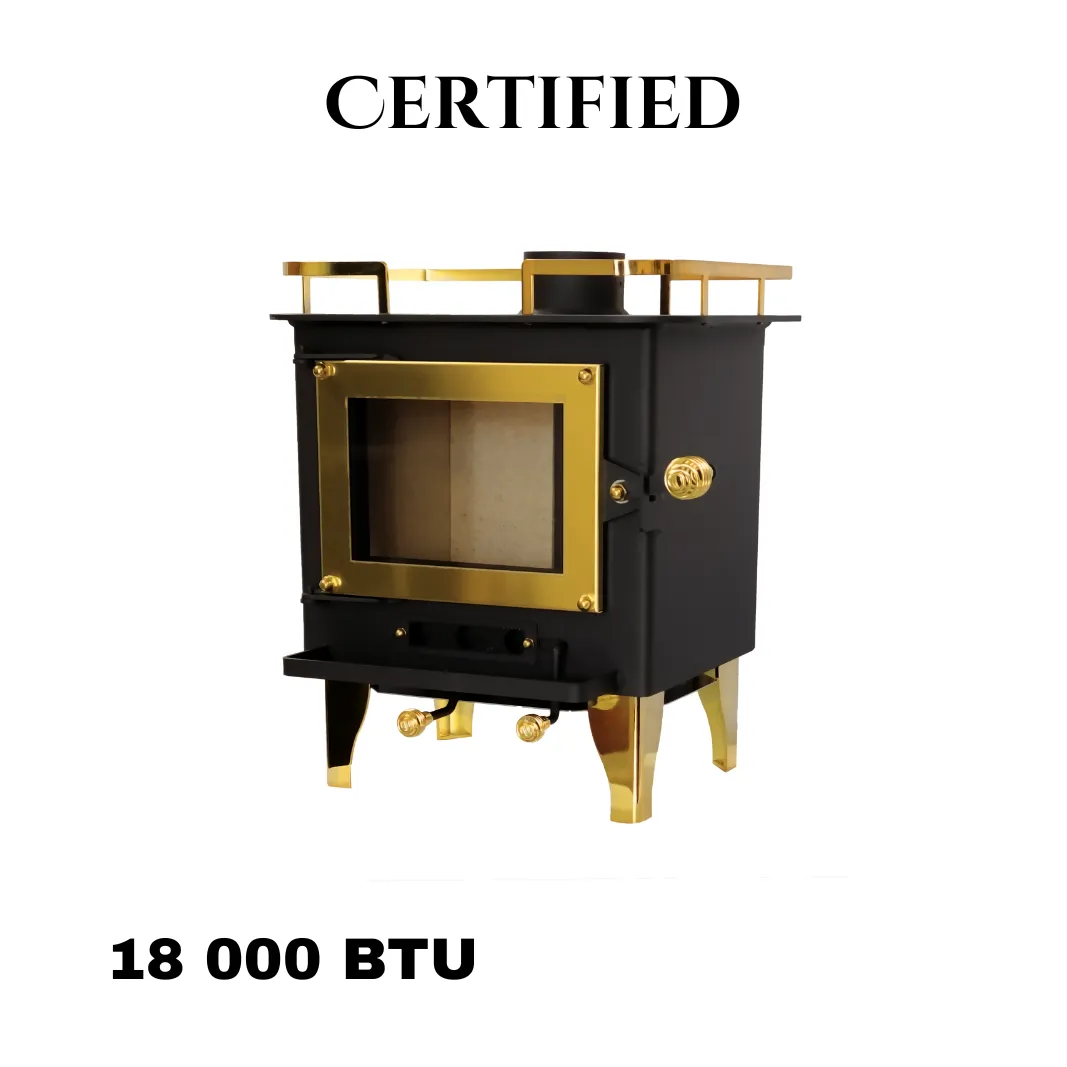

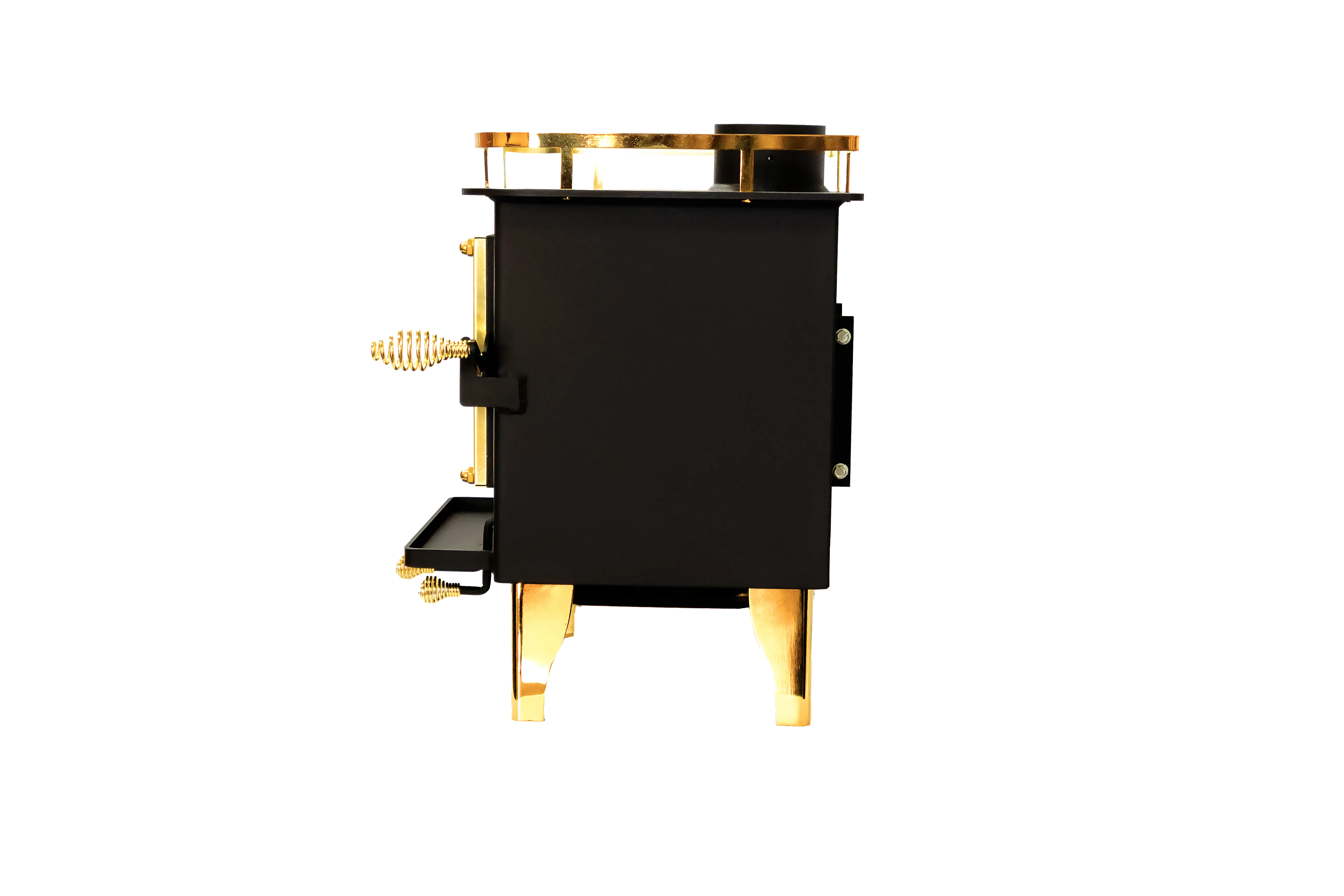

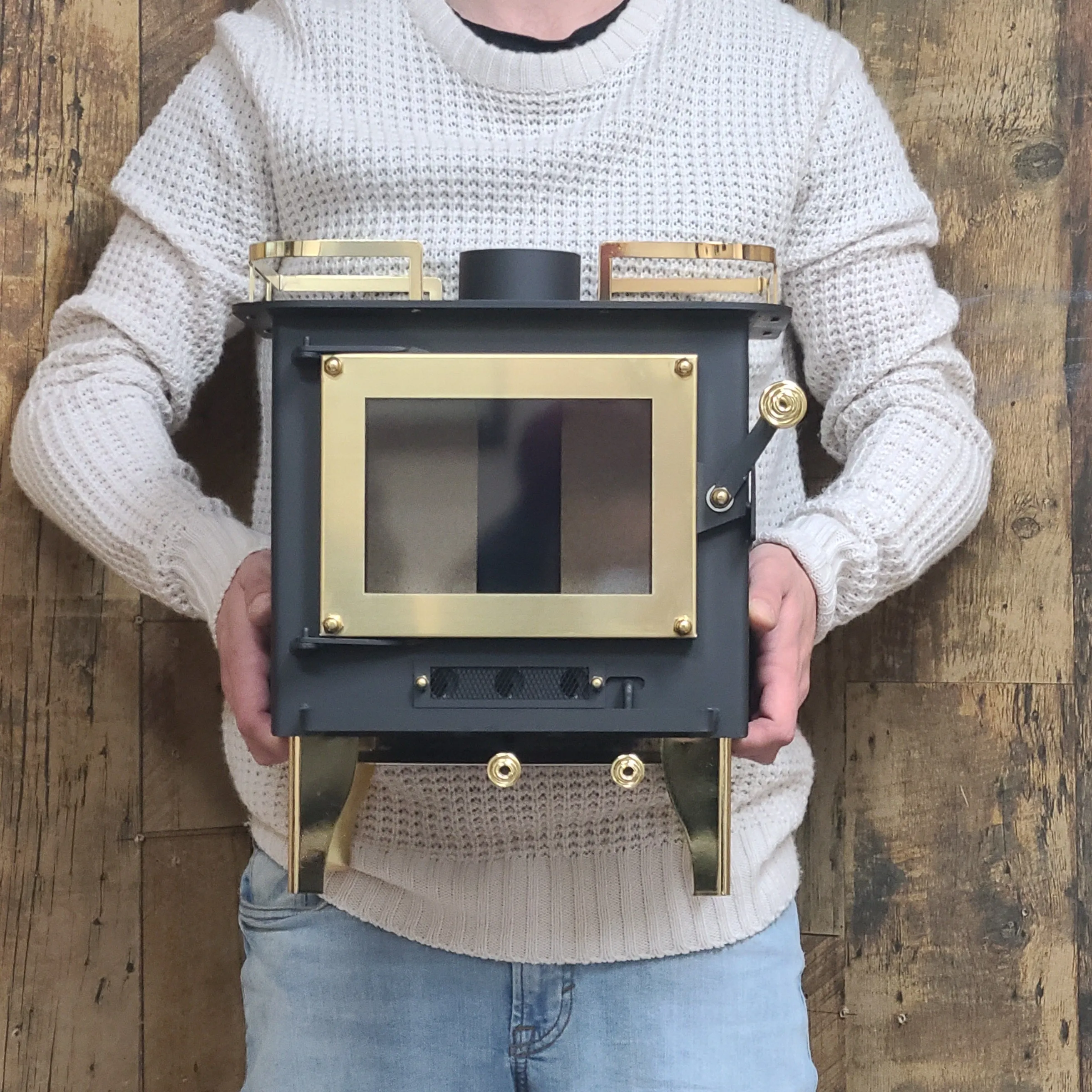

Introducing the Grizzly CB-1210-BR, our latest innovation in compact heating solutions. This wood stove combines efficiency and durability, now fully certified to meet UL 1482-2022 (U.S.) and ULC S627-2023 (Canada) standards.
Featuring an advanced secondary combustion system, the Grizzly CB-1210-BR maximizes fuel efficiency and minimizes emissions, making it an excellent room heater. Its robust construction and compact design ensure seamless integration into cabins, tiny homes, and small living spaces, providing powerful and consistent warmth.
Features
- Easy to install and easy to operate!
- Eco-friendly
- Produces very little smoke due to its secondary combustion system!
- Much safer than a diesel or propane cook stove!
- Removes humidity from the cabin.
- The rail is easily removable.
Dimensions/Weight
- 40lb
- Measures only 13" (Wide) x 15" (High) x 12" (Depth) ( 33.02 cm x 38.1 cm x 30.48 cm ).
- If you remove the rail you have a cooking area of 6 1/2" ( 16.51 cm ) from the flue to the edge of the plate and 13" ( 33.02 cm ) side to side.
- Measurements for the interior firebox: 6.75" (Depth) x 7.375" (Wide) x 7.5" (Tall) (17.145 cm x 18.733 cm x 19.05 cm).
Specifics
- Requires a horizontal clearance of 14" ( 35.56 cm ) on the sides and 16" ( 40.64 cm) at the front of the room heater, without shielding and a vertical clearance of 40" ( 101.6 cm ).
- Utilize the bottom heat shield to safeguard the underlying surface when placed onto a certified hearth pad ( manual page 10)
- zero-clearance when using proper mounting and shielding. When wall-mounted, the distance off the wall will have to be greater than what we have displayed ( 7" minimum distance from wall to center of pipe).
- The stove needs a complete flue system comprising of 3"(7.62 cm) flue pipe, with a standard 6" double wall chimney system certified to UL103 HT(U.S.A) or ULC-S629(Canada). Specifically designed to connect to a Duravent chimney system.
- The is used to transition from our 3" to the 6" double wall chimney system NOT INCLUDED.
Material
- 3/16" laser cut steel top plate.
- 1/8" laser cut steel body.
- 1/2" thick vermiculate firebrick insulation.
- 3/16" thick self cleaning robax glass.
- Brass plated coil handles.
